IYRO OG Series
Off-Grid Solar Inverters
925 VA – 15 kVA
PWM & MPPT variants
Pure sine wave
Standalone solar PCUs with pure sine wave output and DSP-controlled LCD, in PWM and MPPT charge-controller variants.
- Pure sine wave output for motor and IT loads
- Battery charging from 90 V AC
- Configurable solar / battery / grid priority
- MPPT tracking accuracy 99.7%
- Selectable tubular, flat-plate, VRLA and lithium charging
Available Models
11 ratings in one series
Same construction and warranty across the range. Pick a rating to see its full specification.
Selected — IYRO OG Series 3.5 kVA
- Rated capacity
- 3.5 kVA
- Battery voltage
- 48 V
- Rated PV input
- 3500 Wp
- Charge controller
- MPPT, 60 A output
- Output waveform
- Pure sine
- Dimensions
- 295 × 375 × 445 mm
- Weight
- kg
The Short Version
For sites the grid never properly reached.
Off-grid is not a downgrade from grid-tie, it is a different problem: the inverter is the only source of stable AC on site, so waveform quality, charge priority and battery handling matter more than peak conversion efficiency.
Pure sine wave
Motors, pumps and switch-mode supplies run cool. Modified sine costs you equipment life.
MPPT or PWM
MPPT tracks at better than 99.7% for maximum harvest; PWM keeps the capital cost down where the array is small.
Charges from 90 V AC
Keeps charging on a supply too weak for most inverters to use at all.
Configurable priority
Solar first, or solar then grid, or solar only — set per site from the keypad rather than assumed.
Selectable battery type
Tubular, flat plate, VRLA or lithium, with the charge profile set to match.
Intelligent charge sharing
Solar and grid charging currents are shared rather than fought over.
Applications
Where this range is specified
Farms and dairy
Sheds and equipment beyond the LT line.

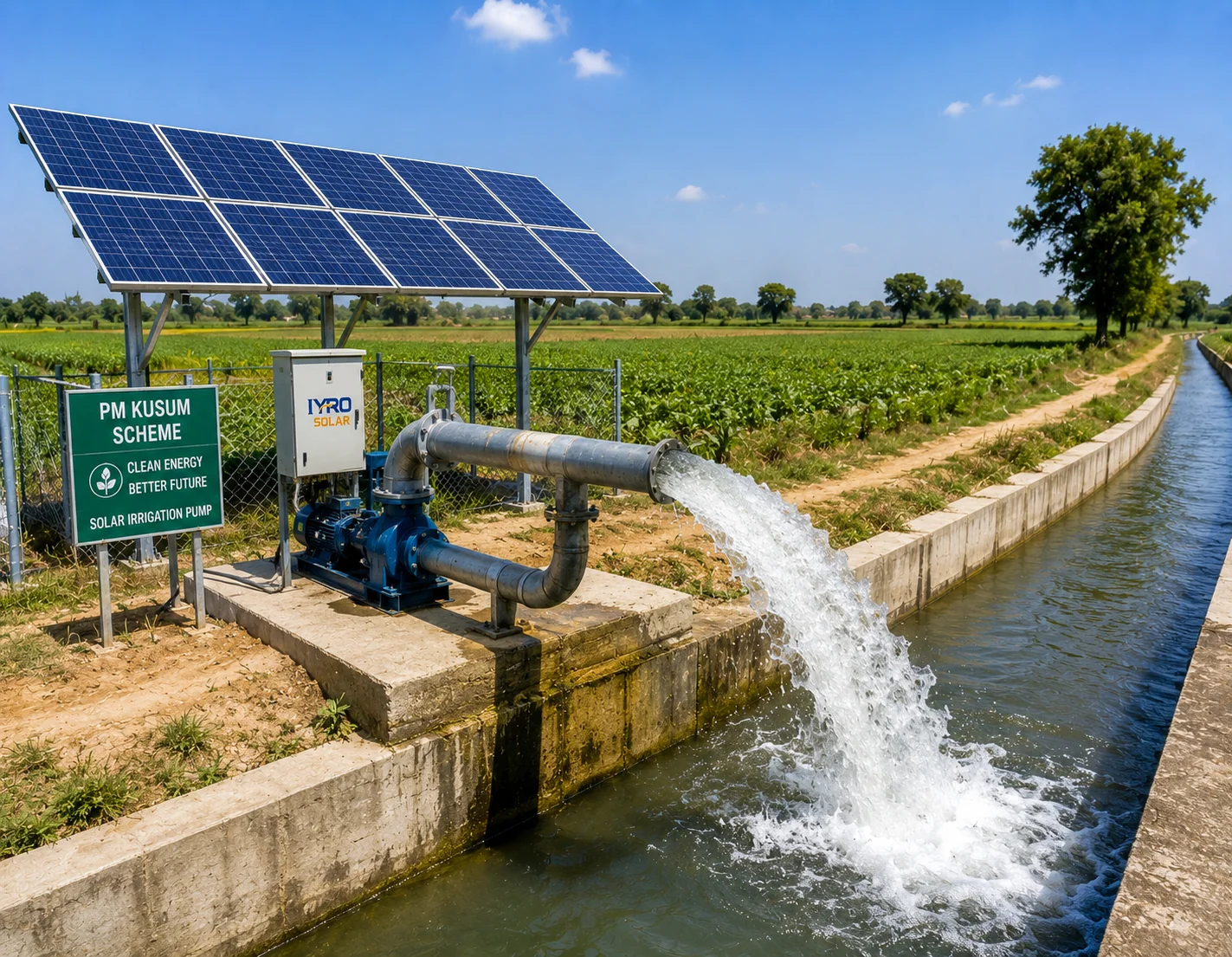

Field installations
Remote pumping and monitoring loads.

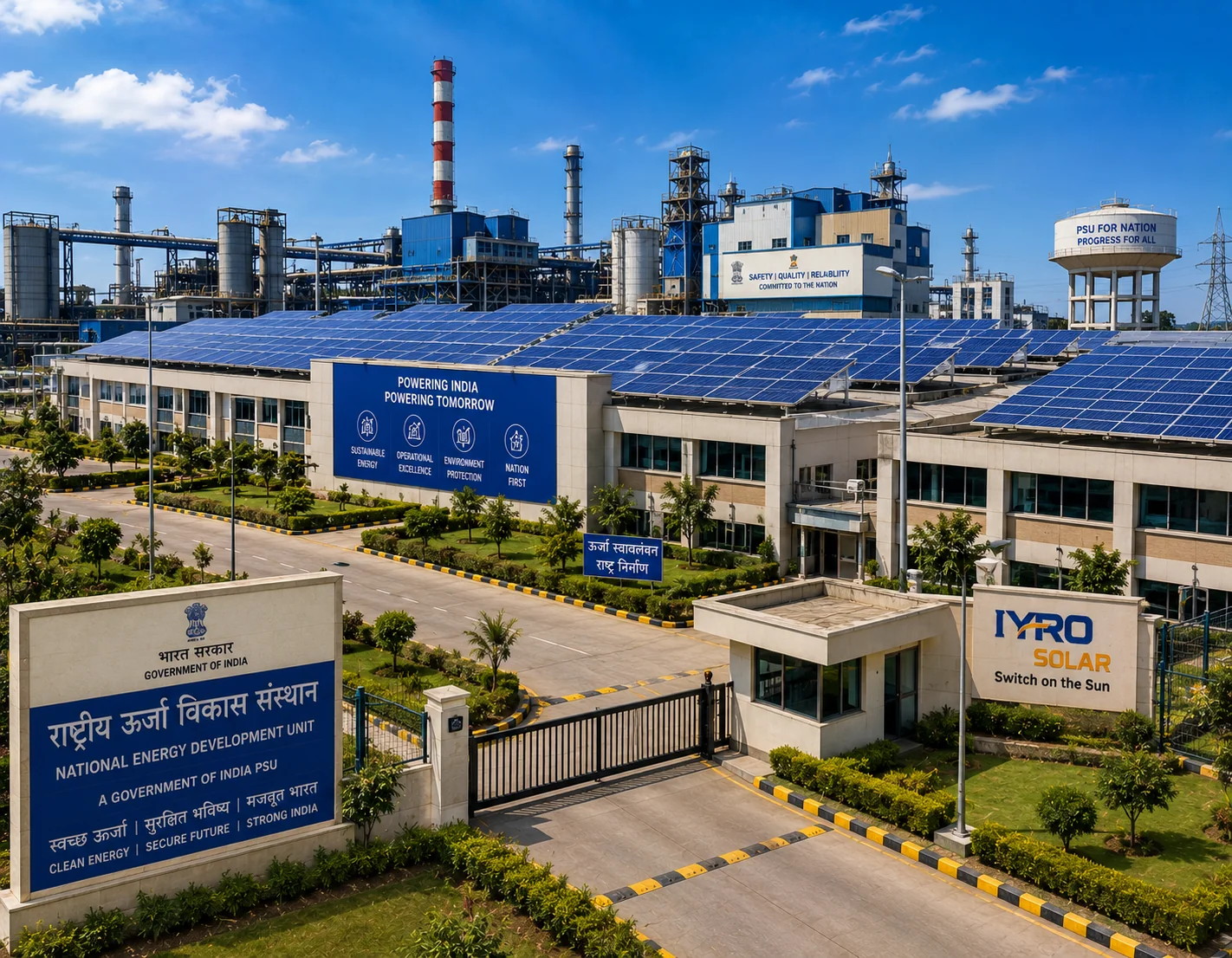

Remote facilities
Sites where extending the grid costs more than the system.
Rural homes
Where supply exists only on paper.
Compare
The full series, side by side
Selected model highlighted.
| Model | 0.925 kVA | 1.05 kVA | 1.2 kVA | 2.25 kVA | 2.75 kVA | 2.25 kVA | 3.5 kVA | 5.25 kVA | 7.5 kVA | 10 kVA | 15 kVA |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated capacity (kVA) | 0.925 | 1.05 | 1.2 | 2.25 | 2.75 | 2.25 | 3.5 | 5.25 | 7.5 | 10 | 15 |
| Battery voltage | 12 V | 12 V | 12 V | 24 V | 24 V | 24 V | 48 V | 48 V | 96 V | 120 V | 192 V |
| Rated PV input (Wp) | 3500 | 3500 | 5000 | ||||||||
| Charge controller | PWM, 50 A max | PWM, 50 A max | PWM, 50 A max | PWM, 70 A max | PWM, 70 A max | MPPT, 70 A output | MPPT, 60 A output | MPPT, 80 A output | MPPT, PV 250–600 V | MPPT | |
| Output waveform | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine | Pure sine |
| Dimensions (mm) | 295 × 288.3 × 134.5 | 295 × 309.8 × 182.5 | 295 × 309.8 × 182.5 | 295 × 315 × 280 | 295 × 315 × 280 | 295 × 375 × 445 | 295 × 375 × 445 | 295 × 375 × 445 | |||
| Weight (kg) | 8.0 – 8.4 | 9.4 – 11.2 | 14.6 – 15.1 | 17.9 – 19.7 | 17.9 – 19.7 |
Common To Every Model
| Output waveform | Pure sine wave |
| Battery charging from | 90 V AC |
| Battery types | Tubular (default), flat-plate lead-acid, VRLA/SMF and lithium-ion, selectable |
| Full load output voltage | 220 V ± 10% |
| Frequency | 50 Hz ± 0.5 Hz |
| Voltage THD | < 3% at no load to full linear load |
| PWM solar charging current | 50 A ± 5% on 12 V, 70 A ± 5% on 24 V |
| MPPT solar range (Voc) | 70 to 170 V ± 5 V |
| MPPT tracking efficiency | > 99.7% |
| Power conversion efficiency | > 96% |
| Transfer time | Typically < 15 ms in WUPS mode, < 10 ms in UPS mode |
| Priority modes | Solar > battery > grid, solar > grid > battery, solar only, or normal — set from the keypad |
| Display | DSP-controlled LCD |
| Protections | Low battery, reverse battery, overload, output short circuit, over temperature, battery high voltage, PV high voltage, PV reverse, PV over current |
| Operating temperature | 0 °C to 45 °C |
| Storage temperature | 0 °C to 45 °C |
| Humidity | 0% to 95% RH, non-condensing |
Documentation
Everything a tender pack needs
No form, no registration. Datasheets are per model.
Product Documents
Test Certificates
Off-grid or hybrid?
If there is a usable grid connection, hybrid. If there is no connection, or it is unusable, off-grid — and note these PCUs will charge from a supply as low as 90 V AC, which is often the real situation rather than no supply at all.
PWM or MPPT?
MPPT tracks the array at better than 99.7% and is worth it on larger arrays and cold mornings. PWM is cheaper and adequate on small 12 V and 24 V systems.
What battery does it need?
Tubular is the default profile, but flat-plate, VRLA and lithium are all selectable from the keypad so the charge voltages match what you actually fitted.
Can I stop it using the grid at all?
Yes. In Solar Only mode the unit never transfers to mains for bypass or charging, and runs on solar and battery alone.
Request Pricing
Tell us the rating and the volume.
Pricing, current lead time and the datasheet come back within one working day. Dealer, project and tender quantities all welcome.
