IYRO NT Series

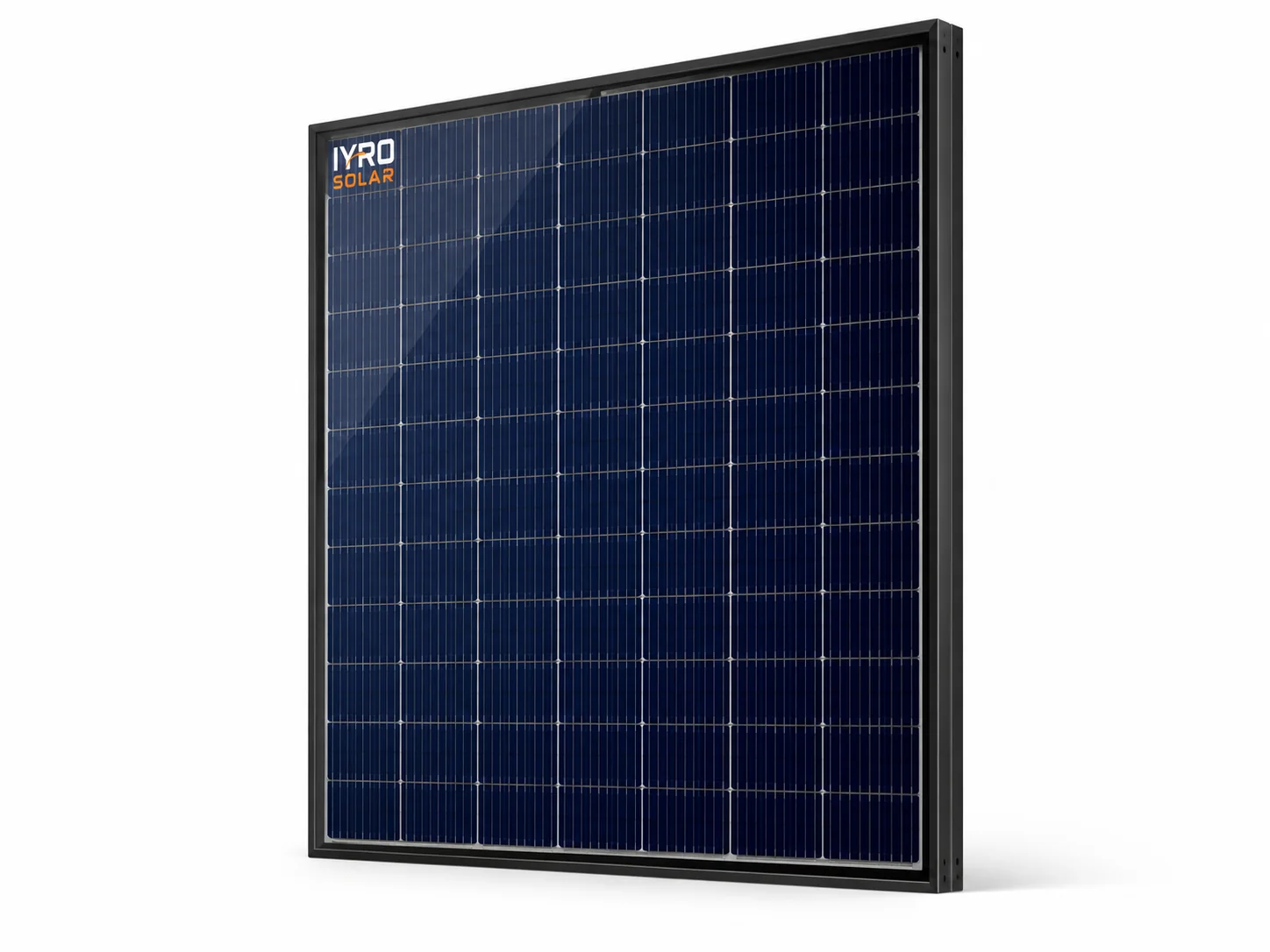

N-Type TOPCon Solar Modules
560 – 600 Wp
Framed dual glass · bifacial
144 half-cut · MBB
Framed dual-glass bifacial modules on N-type TOPCon cells — 144 half-cut cells, multi-busbar, rated for 5400 Pa snow and 2400 Pa wind.
- Up to 23.26% module efficiency
- Bifaciality factor 80 ± 5%
- Rated backside gain to +25% power output
- 5400 Pa snow load, 2400 Pa wind load
- 10-year product · 25-year linear performance warranty
Available Models
9 ratings in one series
Same construction and warranty across the range. Pick a rating to see its full specification.
Selected — IYRO NT Series 580 W
- Peak power (Pmax)
- 580 Wp
- Module efficiency
- 22.48 %
- Open-circuit voltage
- 51.30 V
- Short-circuit current
- 14.28 A
- Voltage at Pmax
- 43.13 V
- Current at Pmax
- 13.45 A
- Cell count
- 144 (91 × 182 mm)
- Dimensions
- 2278 × 1134 × 35 mm
- Weight
- 32.3 kg
The Short Version
A thin oxide layer, and less of your power lost as heat.

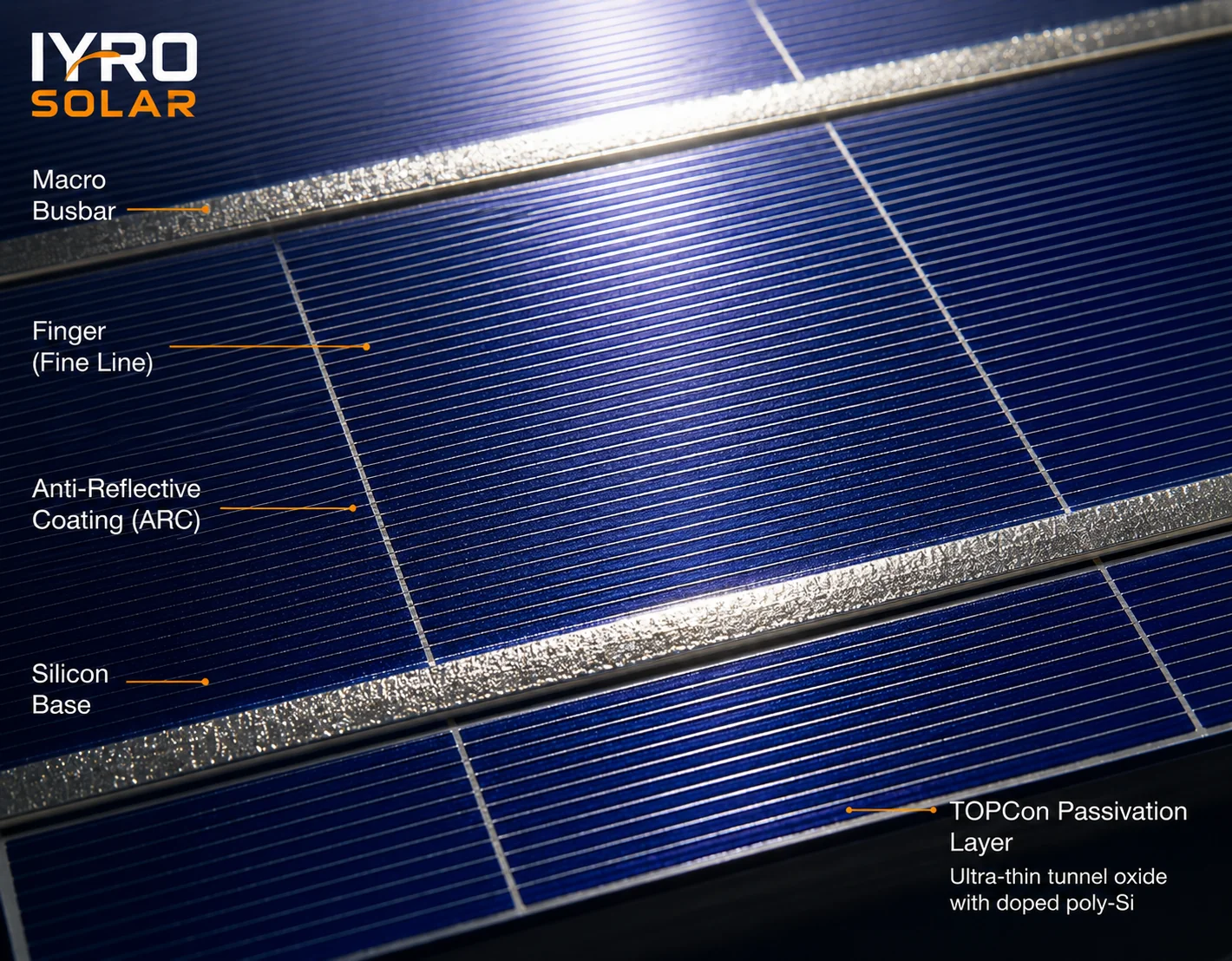

TOPCon puts an ultra-thin tunnel oxide between the silicon and the contact. Carriers still pass; recombination at the contact largely does not. More output from the same roof area, and noticeably less loss on a 45 °C afternoon than a PERC module of the same rating.
Higher module efficiency
Up to 23.26% at STC, so a fixed roof carries more kW and balance-of-system cost per watt falls.
Bifacial, 80 ± 5% bifaciality
Rear-side generation on top of the front-side rating — the brochure rates gain scenarios to +25%.
Best-in-class thermal coefficients
Less power lost per degree above 25 °C — visible every summer afternoon.
Better weak-light performance
Useful output earlier and later in the day, and through overcast conditions.
Enhanced crack tolerance
Half-cut multi-busbar layout, rated for 5400 Pa snow and 2400 Pa wind load.
Excellent PID resistance
PID-free, UV-resistant encapsulation for humid and coastal sites.
Applications
Where this range is specified
Residential rooftop
560–575 W for 3–10 kW domestic arrays.
Commercial rooftop
580–600 W balances string length against roof access.
Ground mount
Bifacial rear gain gets its best return over reflective ground cover.
Utility scale
Dual-glass construction for long-duration outdoor exposure.
Compare
The full series, side by side
Selected model highlighted.
| Model | 560 W | 565 W | 570 W | 575 W | 580 W | 585 W | 590 W | 595 W | 600 W |
|---|---|---|---|---|---|---|---|---|---|
| Peak power (Pmax) (Wp) | 560 | 565 | 570 | 575 | 580 | 585 | 590 | 595 | 600 |
| Module efficiency (%) | 21.71 | 21.90 | 22.09 | 22.29 | 22.48 | 22.67 | 22.87 | 23.06 | 23.26 |
| Open-circuit voltage (V) | 50.50 | 50.70 | 50.90 | 51.10 | 51.30 | 51.50 | 51.70 | 51.90 | 52.10 |
| Short-circuit current (A) | 13.93 | 14.02 | 14.10 | 14.20 | 14.28 | 14.36 | 14.45 | 14.53 | 14.61 |
| Voltage at Pmax (V) | 42.44 | 42.61 | 42.77 | 42.94 | 43.13 | 43.27 | 43.45 | 43.62 | 43.83 |
| Current at Pmax (A) | 13.20 | 13.26 | 13.33 | 13.40 | 13.45 | 13.52 | 13.58 | 13.65 | 13.69 |
| Cell count | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) | 144 (91 × 182 mm) |
| Dimensions (mm) | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 | 2278 × 1134 × 35 |
| Weight (kg) | 32.3 | 32.3 | 32.3 | 32.3 | 32.3 | 32.3 | 32.3 | 32.3 | 32.3 |
Common To Every Model
| Cell technology | TOPCon N-type mono bifacial, half-cut, multi-busbar |
| Cell size | 91 × 182 mm |
| Cell arrangement | 144 cells (12 × 6 || 12 × 6) |
| Bifaciality factor | 80 ± 5% |
| Backside power gain | Rated at 10%, 15%, 20% and 25% — dependent on plant design and location |
| Front / back glass | 2 mm low-iron semi-tempered glass |
| Encapsulant | PID free and UV resistant |
| Back sheet | Dual glass (framed) |
| Frame | Anodised aluminium alloy |

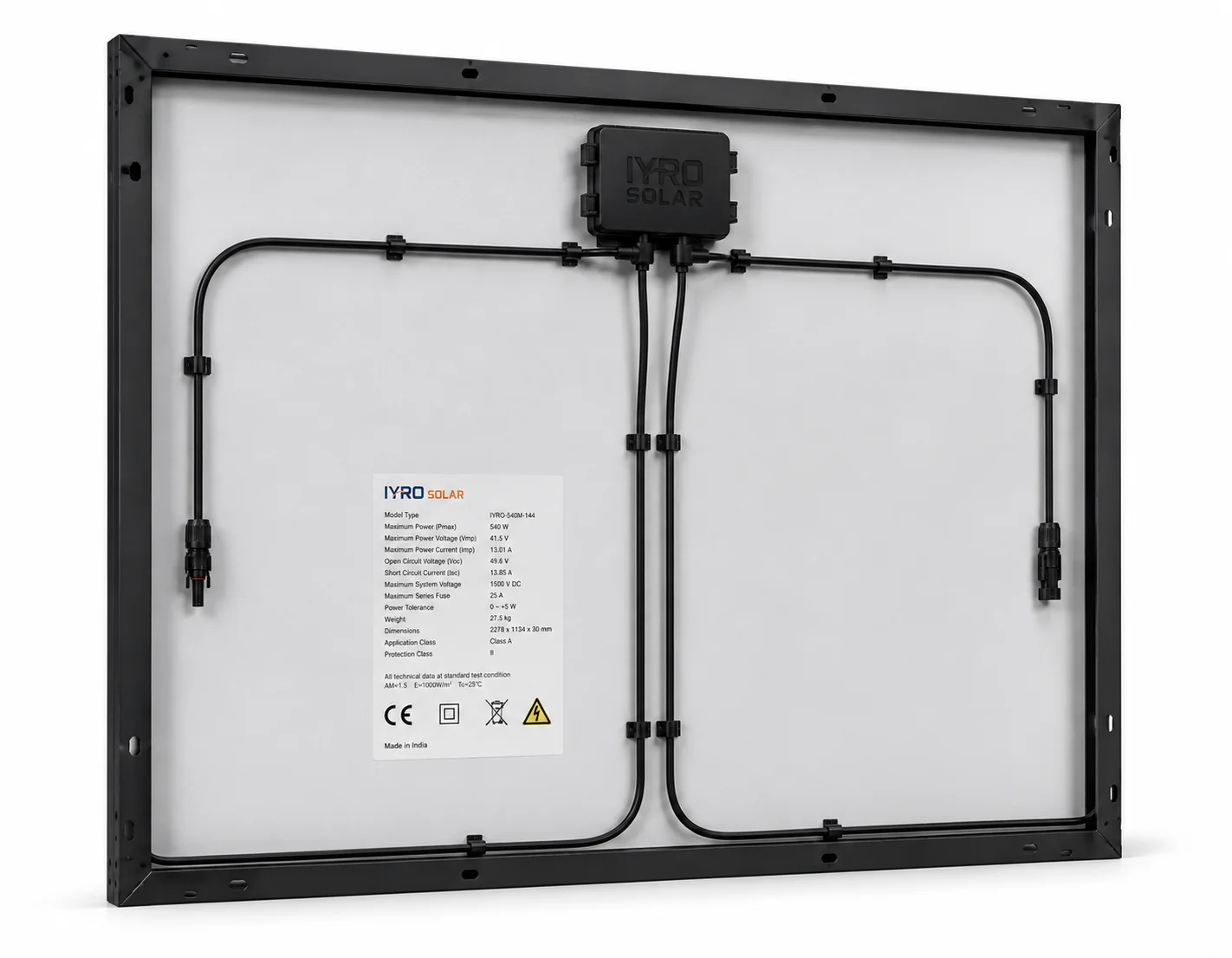

| Junction box | IP68, weatherproof PPO |
| Cable and connector | IP68 rated, MC4 compatible |
| Cable cross-section and length | 4 mm² × 500 mm |
| Mechanical load | 5400 Pa snow, 2400 Pa wind |
| NOCT | 43 ± 2 °C |
| Operating temperature | −40 °C to +85 °C |
| Temperature coefficient of Isc (α) | 0.046 %/°C |
| Temperature coefficient — second row, unlabelled in datasheet | −0.26 %/°C |
| Temperature coefficient — third row, unlabelled in datasheet | −0.30 %/°C |
| Product warranty | 10 years |
| Performance warranty | 25 years linear |
| Certification | IS 14286:2010 / IEC 61215:2005, IS/IEC 61730 (Part 1 & 2):2004, IEC TS 62804-1:2015, IEC 61701:2020 |
Documentation
Everything a tender pack needs
No form, no registration. Datasheets are per model.
Product Documents
Test Certificates
What actually changes with TOPCon versus Mono PERC?
A tunnel-oxide layer cuts recombination at the rear contact. Higher efficiency ceiling and better temperature coefficients. On a fixed roof that means more kW installed; over 25 years, more kWh from the same kW.
Which rating should I specify for a rooftop?
The series runs 560 W to 600 W in 5 W steps on one physical size — 2278 × 1134 × 35 mm at 32.3 kg. Specify by string voltage and roof area rather than by rating alone; the module handling weight does not change across the range.
Are these modules bifacial?
The whole series is — framed dual glass, bifaciality factor 80 ± 5%. The datasheet rates backside gain at 10%, 15%, 20% and 25% scenarios, but states plainly that actual gain depends on plant design and location, so we quote it per site rather than as a headline number.
What is the warranty?
10 years product and 25 years linear performance, against IS 14286:2010 / IEC 61215:2005, IS/IEC 61730 Parts 1 and 2, IEC TS 62804-1:2015 and IEC 61701:2020.
